Rust MCP server for Titan Builder — bring Ethereum block builder capabilities to AI coding agents.

The first MCP (Model Context Protocol) server for an Ethereum block builder. Enables AI agents like Claude Code and Cursor to interact with Titan Builder's MEV infrastructure directly — send bundles, debug failures, submit transactions, and more.

Highlights

Enhanced Bundle Tracing — AI-ready diagnostic analysis on top of titan_getBundleStats — see below
5 MCP tools mapping to Titan Builder's complete API surface
Single binary — zero runtime dependencies, compiled Rust
Regional endpoints — US, EU, Asia for minimal latency

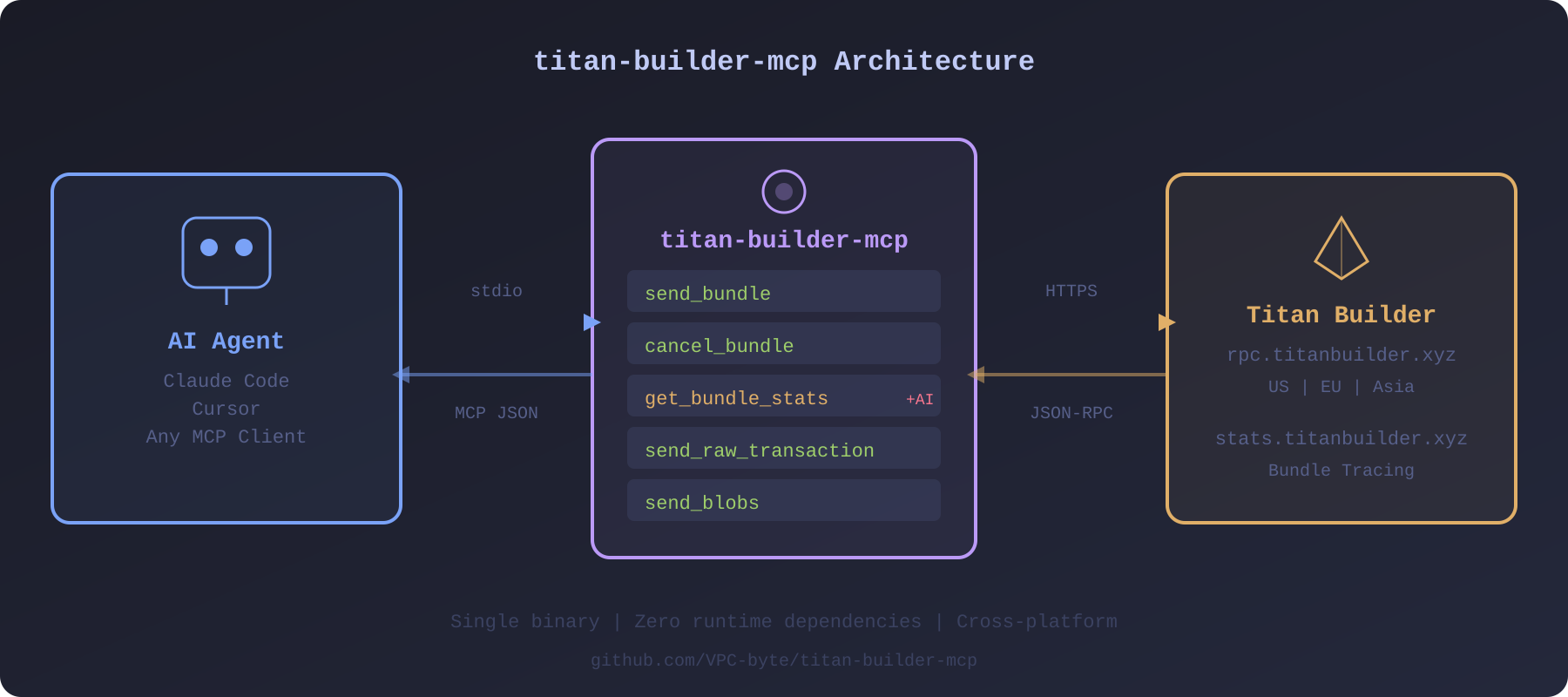

Architecture

titan-builder-mcp architecture

Quick Start

Install:

cargo install titan-builder-mcp

Configure (Claude Code ~/.claude/settings.json):

{
  "mcpServers": {
    "titan-builder": {
      "command": "titan-builder-mcp",
      "env": {
        "TITAN_RPC_URL": "https://us.rpc.titanbuilder.xyz"
      }
    }
  }
}

Use: Once configured, your AI agent can send bundles, check bundle status, submit transactions, and debug failures through natural language.

Enhanced Bundle Tracing

The core feature. When your bundle fails, you shouldn't have to guess why.

Titan Builder provides Bundle Tracing via titan_getBundleStats — returning status codes, builder payment data, and error details. Our MCP server adds an AI-ready diagnostic layer on top: root cause analysis, actionable fix suggestions, and payment flags.

Without Enhanced Bundle Tracing

Raw API response — you see what happened, but not why or what to do:

{
  "status": "SimulationFail",
  "builderPayment": "0",
  "builderPaymentWhenIncluded": "0",
  "error": "BundleRevert. Reverting Hash: 0xa1b2c3d4e5f6...789"
}

With Enhanced Bundle Tracing

Same response + structured diagnostic analysis:

## Raw Response
{
  "status": "SimulationFail",
  "builderPayment": "0",
  "builderPaymentWhenIncluded": "0",
  "error": "BundleRevert. Reverting Hash: 0xa1b2c3d4e5f6...789"
}

## Analysis
Status: SimulationFail
Root cause: Transaction 0xa1b2c3d4e5f6...789 reverted during top-of-block simulation.

Suggestions:
- Add 0xa1b2c3d4e5f6...789 to revertingTxHashes if this revert is acceptable
- Verify the transaction succeeds via estimateGas against current state
- Ensure builder payment (post-bundle balance - pre-bundle balance) is > 0

What it analyzes

| Capability | Description | |---|---| | Root cause identification | Maps each of 7 bundle statuses to a human-readable explanation | | Actionable suggestions | Specific steps to fix the issue — not generic advice | | Payment analysis | Flags when builderPayment is 0 (your bundle pays nothing to the builder) | | Revert detection | Extracts reverting transaction hashes from error messages and suggests adding them to revertingTxHashes |

This is pure analysis — no additional API calls. It runs entirely on the response data from titan_getBundleStats.

Tools

| Tool | Titan API | Description | |---|---|---| | send_bundle | eth_sendBundle | Send an atomic bundle of signed transactions | | cancel_bundle | eth_cancelBundle | Cancel a bundle by replacement UUID | | get_bundle_stats | titan_getBundleStats | Query bundle status with diagnostic analysis | | send_raw_transaction | eth_sendRawTransaction | Submit a signed transaction via private mempool | | send_blobs | eth_sendBlobs | Send blob transaction permutations for optimal inclusion |

Bundle Status Reference

| Status | Meaning | Diagnostic | |---|---|---| | Received | Arrived too late for the pool | Submit earlier, use regional endpoint | | Invalid | Malformed bundle | Check RLP, chain ID, nonces, block number | | SimulationFail | Revert or zero builder payment | Fix reverting tx or increase priority fee | | SimulationPass | Passed but too late | Submit earlier in the slot | | ExcludedFromBlock | Insufficient bribe (99% of cases) | Increase priority fee | | IncludedInBlock | Lost to a more valuable block | Increase bribe | | Submitted | Success — submitted to relay | Monitor for on-chain inclusion |

Configuration

| Environment Variable | Description | Default | |---|---|---| | TITAN_RPC_URL | Titan Builder RPC endpoint | https://rpc.titanbuilder.xyz | | TITAN_TIMEOUT_MS | HTTP request timeout (ms) | 10000 |

Regional Endpoints

| Region | URL | |---|---| | Global (geo-routed) | https://rpc.titanbuilder.xyz | | United States | https://us.rpc.titanbuilder.xyz | | Europe | https://eu.rpc.titanbuilder.xyz | | Asia | https://ap.rpc.titanbuilder.xyz | | Testnet (Hoodi) | https://rpc-hoodi.titanbuilder.xyz |

Building from Source

git clone https://github.com/VPC-byte/titan-builder-mcp.git
cd titan-builder-mcp
cargo build --release

titan-builder-skill — Claude Code skill for MEV development assistance and bundle debugging

License

MIT
